Navigating FPOS Remote Control

1. Main Action Bar
The Main Action Bar indicates which screen is displayed. FPOS Remote Control apphas a total of five screens.In the image above, the third screen, is the active screen.



2. Dashboard
Each screen in FPOS is called a dashboard. To access a dashboard, swipe (or flick) the screen to the left or right. To view any widgets not visible on the dashboard, swipe up or down with your finger. For example, in the image above, four of the five widget spaces are showing. Swipe up to scroll down the screen to view the fifth widget space.



3. Bottom Action Bar
The Button Action Bar in FPOS Remote Control contains the Report List, Remote Maintenance, General Settings, and Refresh functions.

	Reports List	Displays reports available in FPOS Remote Control. The Report List function allows users to select and configure reports to be stored in widgets on the dashboard.
	Remote Maintenance	Displays remote maintenances available in FPOS Remote Control. The Remote Maintenances function allows users to select and configure remote maintenance options.
	General Settings	Displays sound, hint, pair to store, change store, and exit the app options.
	Refresh	Refreshes the information displayed in the widgets

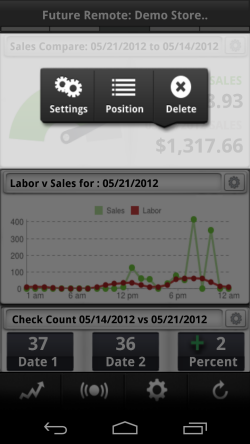

Tapping the Widget Settings icon loads the Settings Menu.

The Settings Menu allows users to access settings for the widget, position the widget, and delete the widget from the dashboard.

Settings
The Settings icon allows users to configure the settings for saved widgets. For example, changing the dates shown in a report.



Position
To position a widget above or below another widget on the same screen, tap the Position icon then double tap the position you wish to place the widget in.



Delete
Tap the Delete icon to delete a widget from the dashboard. Once a widget has been deleted, a new widget must be created. Deleted widgets cannot be retrieved.
