Loading Current Settings

The Load Current Settings option allows users to view current update settings. Note that if the scheduled update is within the buffer period configured in Scheduled Update Maintenance, it will be displayed as the Current Settings. For example, an update is scheduled for 12:05 PM today, and it is currently 12:00 PM. In this case, the scheduled update for 12:05 PM will be displayed when the Load Current Settings option is selected.

ClosedHow to Load Current Settings

In the example below, Button Maintenance is shown. Users can view current settings from within the any respective Maintenance which supports Scheduled Updates.

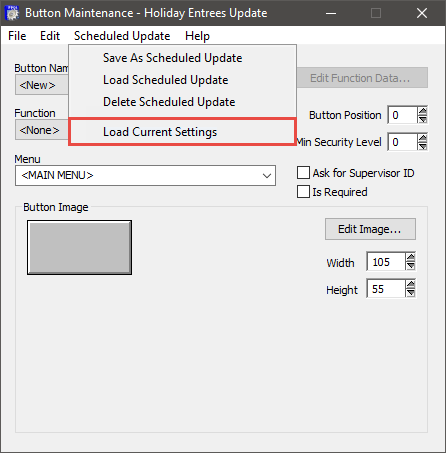

  1. From Button Maintenance, verify that the window is displaying a Scheduled Update. The Scheduled Update Group Name will be displayed in the titlebar, as shown in the Button Maintenance image below.

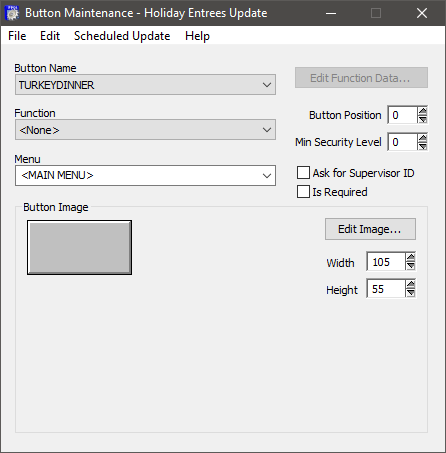

  2. Click the Scheduled Update menu, then click the Load Current Settings option. The Button Maintenance current settings window will open. In the second image below,"Button Maintenance" is displayed in the titlebar.
