Sub-Menu

This function defines a "Sub-Menu" for the Front End. Sub-menus allow the user to access more buttons than what can be displayed on the Front End at one time by switching from the current menu to one specified by this button. The sub-menu name will appear in the "Menu" combo box and the user can begin to place buttons on this new menu. Select the In Menu Mode option to utilize for display on Mobile POS.

ClosedHow to Create a "Sub-Menu" Button
  1. In Button Maintenance, select Sub-Menu from the Function drop-down.
  2. Click Edit Function Data.
  3. Select the In Menu Mode option to utilize. The user can select between Default, Detail, Navigation, and Hidden.
    • Default: will cause the button to be shown at the top-level department navigation.
    • Detail: will cause the button to display inside of other menus, alongside items.
    • Navigation: will cause the button to be shown at the top-level department navigation.
    • Hidden: will cause the button to not be shown at all.
  4. Select your preferred settings and then click OK.
  5. Select the Menu and set the Button Position. If desired, set the Min Security Level, Width, Height, Button Appearance and Ask for Supervisor ID. See General Button Maintenance Functions for an overview about the general fields.
  6. Click the Edit Image button to modify the button attributes.
  7. Click File > Save As.
  8. Type a name for the button in the field labeled Button Name.
  9. Click OK.

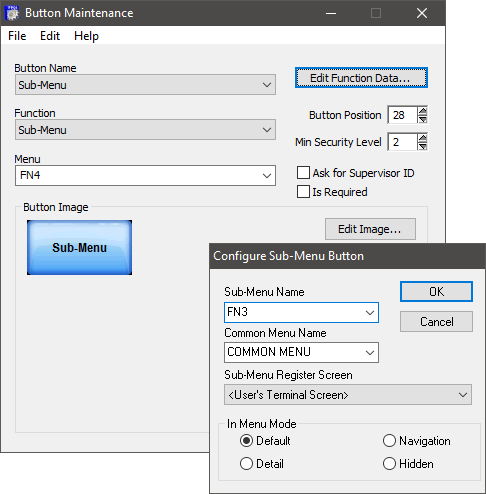

    Button Maintenance Sub-Menu
